DBMS Normal Forms: A Comprehensive Guide with Examples

Introduction to Database Normalization

Database normalization is the process of structuring a relational database to reduce data redundancy and improve data integrity. It uses a series of rules, called DBMS normal forms, to guide how tables should be designed.

This blog explains the first three normal forms (1NF, 2NF, 3NF), why normalization in DBMS matters, and includes clear DBMS examples and diagrams.

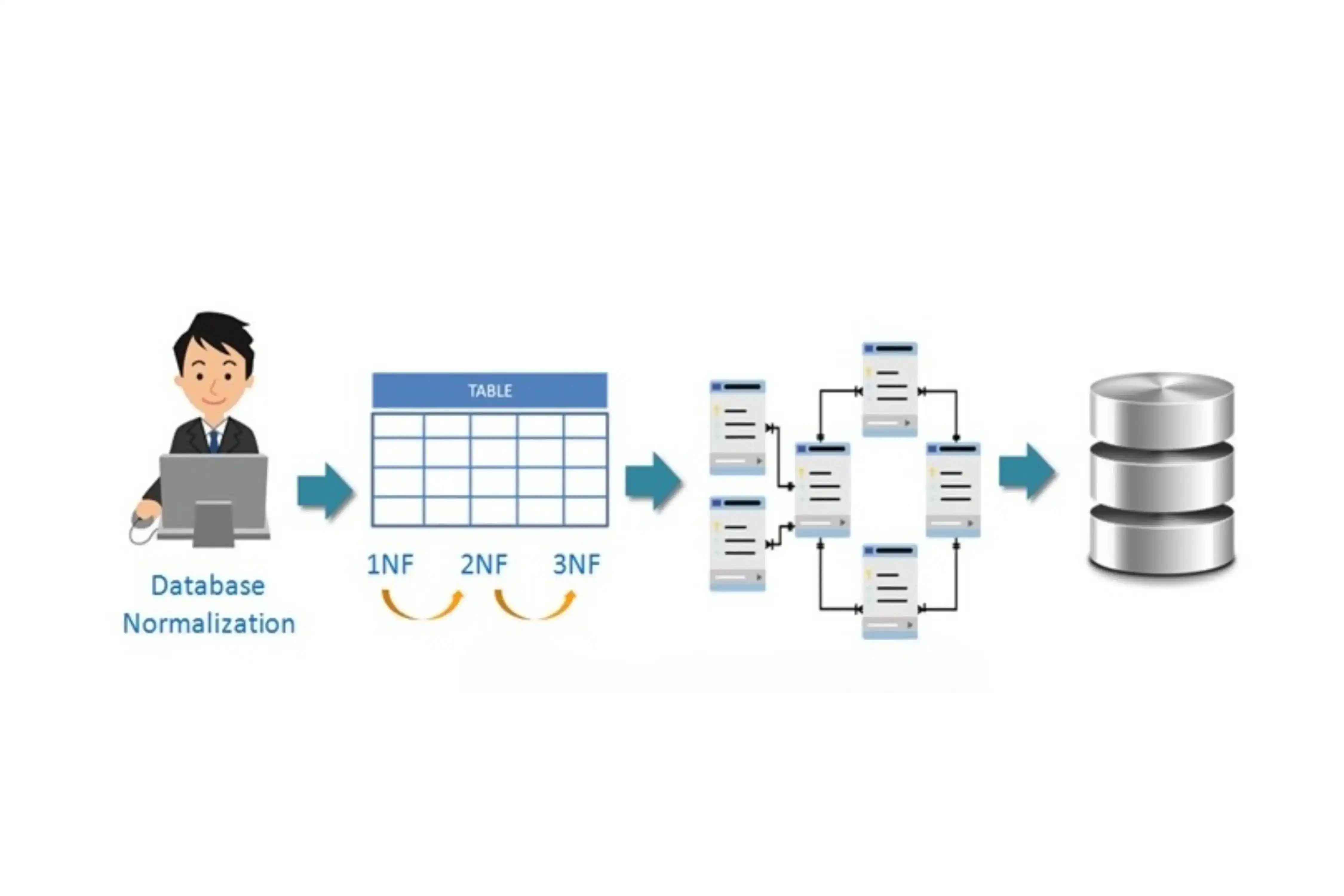

What is the Purpose of Normalization?

Normalization helps improve the organization of data in a database by reducing redundancy and improving data integrity.

Image Source: google

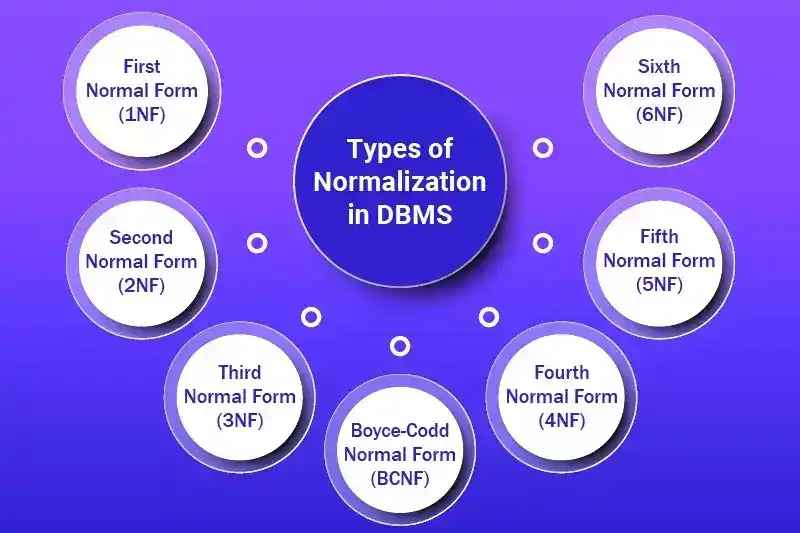

What are the Levels of Normalization?

Normalization is structured into multiple levels known as normal forms (NF), each of which reduces redundancy in specific ways.

Image Source: google

The First Normal Form (1NF)

The First Normal Form (1NF) is the most basic level of database normalization. It ensures that:

• Every column contains only atomic (indivisible) values.
• Each record (row) is unique.
• There are no repeating groups or arrays in a single column.

This helps maintain data consistency and makes querying easier.

Example of 1NF

Let’s understand 1NF with a simple example. Suppose we have a student table where the Subjects column contains multiple values.

Table before 1NF (Unnormalized Data):

This table violates 1NF because the "Subjects" column contains multiple values in a single field.

Table after applying 1NF (Normalized Data):

We split the multiple values in the "Subjects" column into individual rows, making the data atomic.

Now the table follows 1NF because:

• Each cell contains only one value.
• There's no repetition of groups.
• Data is structured in a clear and consistent format. Here are your updated links in the same format as the UI/UX Design Services one you provided:

Hire SQL Server Developers.

Leverage expert SQL Server developers to build scalable, secure, and high-performance database solutions.

Let me know if you’d like the tone to be more technical, casual, or aligned with a specific audience (e.g., startups, enterprises).

The Second Normal Form (2NF)

Second Normal Form (2NF) builds on 1NF and addresses the concept of partial dependency. A table is in 2NF if:

• It is already in 1NF.
• All non-key attributes are fully functionally dependent on the entire primary key, not just part of it.

This is especially relevant when the table has a composite primary key (a key formed by more than one column).

Example of 2NF

Let’s look at a student-course-teacher scenario:

Table before 2NF (violating partial dependency):

Here, the composite primary key is (StudentID, Subject). However:

• Teacher and DeptID depend only on Subject, not on the full key.

This violates 2NF due to partial dependencies.

After applying 2NF (Breaking into separate tables):

We remove the partial dependency by creating two separate tables:

StudentSubject Table (to capture enrollment):

SubjectDetails Table (to store subject-specific info):

Now:

• Each table has a clear purpose.
• No non-key attribute depends on only part of a key.
• The design is more maintainable and normalized.

Need expert help with database design and optimization?

Talk to an Expert

The Third Normal Form (3NF)

Third Normal Form (3NF) ensures that a table is:

• Already in 2NF
• And that non-key attributes do not transitively depend on other non-key attributes.

This avoids transitive dependencies, where:

A → B and B → C implies A → C
In normalization, such indirect dependencies must be removed.

Example of 3NF

Before 3NF:

Here:

• StudentID is the primary key.
• DeptName depends on DeptID, not directly on the primary key — causing a transitive dependency.

After 3NF:

Student Table:

Department Table:

Now:

• DeptName is moved to a separate table.
• No transitive dependencies exist in either table.

Hire MySQL Developers.

Get reliable MySQL developers to optimize and manage your open-source relational databases effectively.

Boyce-Codd Normal Form (BCNF)

BCNF is an enhancement of 3NF. It deals with anomalies that 3NF does not handle when a non-candidate key acts as a determinant.

BCNF Condition:

For every functional dependency X → Y, X must be a candidate key.

Example of BCNF

Before BCNF:

Here:

• Teacher → Room is a valid dependency.
• But Teacher is not a candidate key. Hence, it violates BCNF.

After BCNF:

Course Table:

Room Table:

Now:

• All functional dependencies stem from candidate keys.
• The schema satisfies BCNF.

Fourth Normal Form (4NF)

4NF addresses multi-valued dependencies (MVDs) — where a single attribute can independently determine multiple values of other attributes.

4NF Rule:

A table should not have more than one independent multi-valued dependency.

Example of 4NF

Before 4NF:

Here:

• StudentID → Course and StudentID → Hobby are independent.
• Storing both together in one table leads to unnecessary combinations.

After 4NF:

Student-Course Table:

Student-Hobby Table:

This structure:

• Removes multi-valued dependencies.
• Makes the data model cleaner and easier to manage.

Fifth Normal Form (5NF)

Fifth Normal Form (5NF), also known as Project-Join Normal Form (PJNF), ensures that data cannot be split into smaller tables through joins without introducing redundancy or losing information.

5NF mainly addresses join dependencies, which occur when:

A table can be decomposed into multiple tables, but recombining them may not preserve the original data.

Hire MongoDB Developers.

Empower your applications with flexible and scalable NoSQL database solutions using skilled MongoDB developers.

Sixth Normal Form (6NF)

Sixth Normal Form (6NF) is used in temporal and time-series databases, where data is constantly changing over time and must be tracked precisely.

6NF breaks data into the most atomic form, especially for attributes that change independently over time.

Note: 6NF is rarely used in everyday transactional systems but is powerful in data warehousing or audit logging scenarios.

Examples of 1NF, 2NF, and 3NF

Let’s walk through a real-world normalization example step-by-step:

Unnormalized Form (UNF)

Data is stored without enforcing atomicity — multiple values in one field.

Original Table (Unnormalized):

Issues:

• Subjects contains multiple values — violates atomicity.

First Normal Form (1NF)

1NF requires:

• Atomic values (no repeating groups or arrays)
• A unique identifier (primary key)

After 1NF:

Now:

• Each subject is stored in a separate row.
• Values are atomic.

Second Normal Form (2NF)

2NF requires:

• Already in 1NF
• No partial dependencies (all non-key attributes depend on the full composite key)

We remove partial dependency by creating new tables:

Student Table:

Subject Table:

Here:

• Teacher and DeptID depend only on Subject, not on StudentID + Subject — now separated.

Third Normal Form (3NF)

3NF requires:

• Already in 2NF
• No transitive dependencies

In our example:

• DeptName depends on DeptID, which is not a primary key — we normalize that.

Student Table:

Department Table:

Now:

• DeptName is moved to a new table.
• No transitive dependencies exist.

This sequence clearly demonstrates how each level of normalization simplifies the schema, eliminates redundancy, and improves integrity.

Looking for reliable database development services?

Explore Our Services

Benefits of Database Normalization

Applying normalization in DBMS has many advantages:

• ✅ Reduces data redundancy
• ✅ Maintains data integrity
• ✅ Increases flexibility and scalability
• ✅ Ensures consistent query results
• ✅ Makes databases easier to maintain

Following DBMS normal forms improves overall application performance, especially in data-heavy systems.

How Hexadecimal Software Can Help You With DBMS Normal Forms

At Hexadecimal Software, we specialize in designing efficient relational databases using DBMS normalization techniques such as 1NF, 2NF, and 3NF.

🧱 Structured Database Architecture

We apply proper normal forms to ensure your database is free of redundancy, supports fast queries, and maintains data integrity.

🛠️ Normalization Consulting

Our experts guide you in applying 1NF, 2NF, and 3NF to transform unstructured or semi-structured tables into optimized relational schemas.

📊 Example-Driven Modeling

We use real-world use cases to model normalized tables—whether you're handling student records, course modules, or enterprise data.

🔗 Relational Integrity Enforcement

We build schemas with clear primary and foreign keys, ensuring strong entity relationships across normalized tables.

🚀 Optimization for Scale

Normalized structures lead to less storage overhead and better performance—ideal for apps that scale with large datasets.

🔍 Auditing & Refactoring

Already have a legacy database? We perform normalization audits and restructure your tables to align with 1NF, 2NF, and 3NF.

🚀 Talk to Our Database Experts

Get clean, structured, and high-performance database design with the power of DBMS normalization—built by the experts at Hexadecimal Software.

Frequently Asked Questions (FAQs)

Q1: What are DBMS normal forms?
A : They are guidelines (1NF, 2NF, 3NF...) used to structure databases efficiently.

Q2: Why is database normalization important?
A : It reduces redundancy, ensures data integrity, and improves query efficiency.

Q3: What is a candidate key?
A : Candidate key is a column (or a set of columns) that can uniquely identify a row in a table. A table can have multiple candidate keys, but only one is chosen as the primary key.

Q4: What happens if I skip normalization?
A : You risk slow queries, inconsistent data, and hard-to-maintain systems.

Q5: Can I normalize an existing database later?
A : Yes, but it must be done carefully to avoid breaking app functionality.

Conclusion

DBMS normal forms are the blueprint for clean, maintainable, and scalable databases. By applying 1NF, 2NF, and 3NF, you reduce clutter, boost performance, and lay the groundwork for integration with modern REST and SOAP APIs.
